System Preferences in OS X 10.10, Yosemite: Trackpad

By Graham K. Rogers

Some of the System Preferences in OS X have been revised with the update to version 10.10, Yosemite. However, in this latest update to Mac OS X, the Trackpad Preferences panel has remained unchanged apart from updated video displays.

Trackpad Preferences had a total revision with the arrival of OS X version 10.7 but the latest update (10.10, Yosemite) remains the same as in 10.8 (Mountain Lion). This preference panel assists with the fine-tuning of either a trackpad that is built in to a notebook computer or the Magic Trackpad that connects to a computer via Bluetooth to bring the same functions to a desktop computer.

The panel for Trackpad preferences is in three parts: Point & Click; Scroll & Zoom; and More Gestures. All gestures and options are illustrated with video clips to the right of the panel. These have been updated for Yosemite.

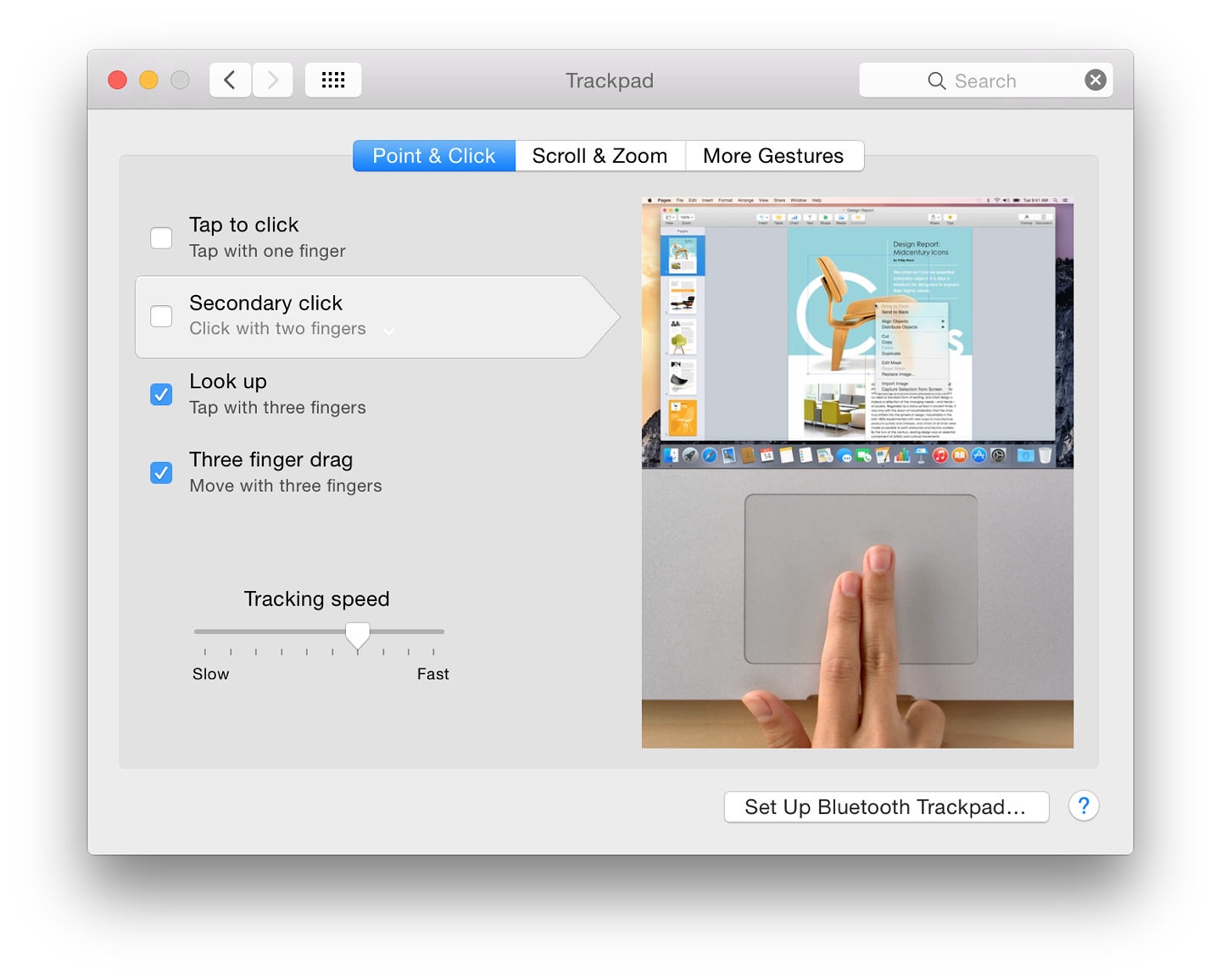

Point & Click

There are four options in this section of the Trackpad preferences:

Tap to click (Tap with one finger) makes the trackpad act like a mouse button or trackpad bar. It seems to be the normal input method for Windows users (I prefer this off which confuses my students).
Secondary click offers three options, each of which is shown in the video display:
- Click or tap with two fingers
- Click in bottom right corner
- Click in bottom left corner
When Tap to click is not selected, the normal setting for two-finger input is shown as Click with two fingers. The video clip shows the demonstrator tapping on the trackpad. This may not work with all computers. However, clicking (not tapping) on the trackpad bar does act as a secondary click for my MacBook Pro.
When the one finger Tap to click is selected, this item changes to "Click or Tap with two fingers". This does work as demonstrated in the video clip.

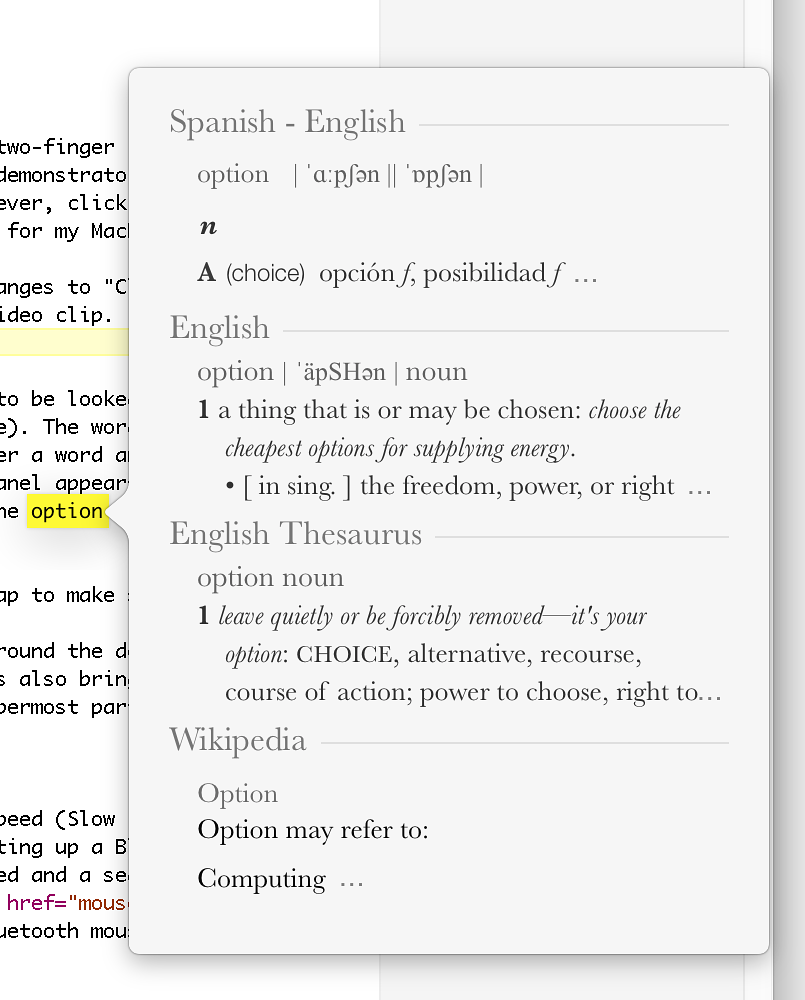

Look Up Look up - A three-finger tap allows a word in text to be looked up in either the Dictionary, Thesaurus or Wikipedia (or all three). The word does not have to be selected by clicking on it. If the cursor is over a word and this gesture is used, the word is highlighted in yellow and a panel appears with information. Those with Little Snitch may want to choose the option to access links, "forever".
Highlighting is not always instant and may need a second tap to make sure.
Three finger drag allows a window to be moved around the desktop in the same way as if the trackpad button were held down. This also brings a window to the front when used. The cursor needs to be over the uppermost part of a window for this to work.

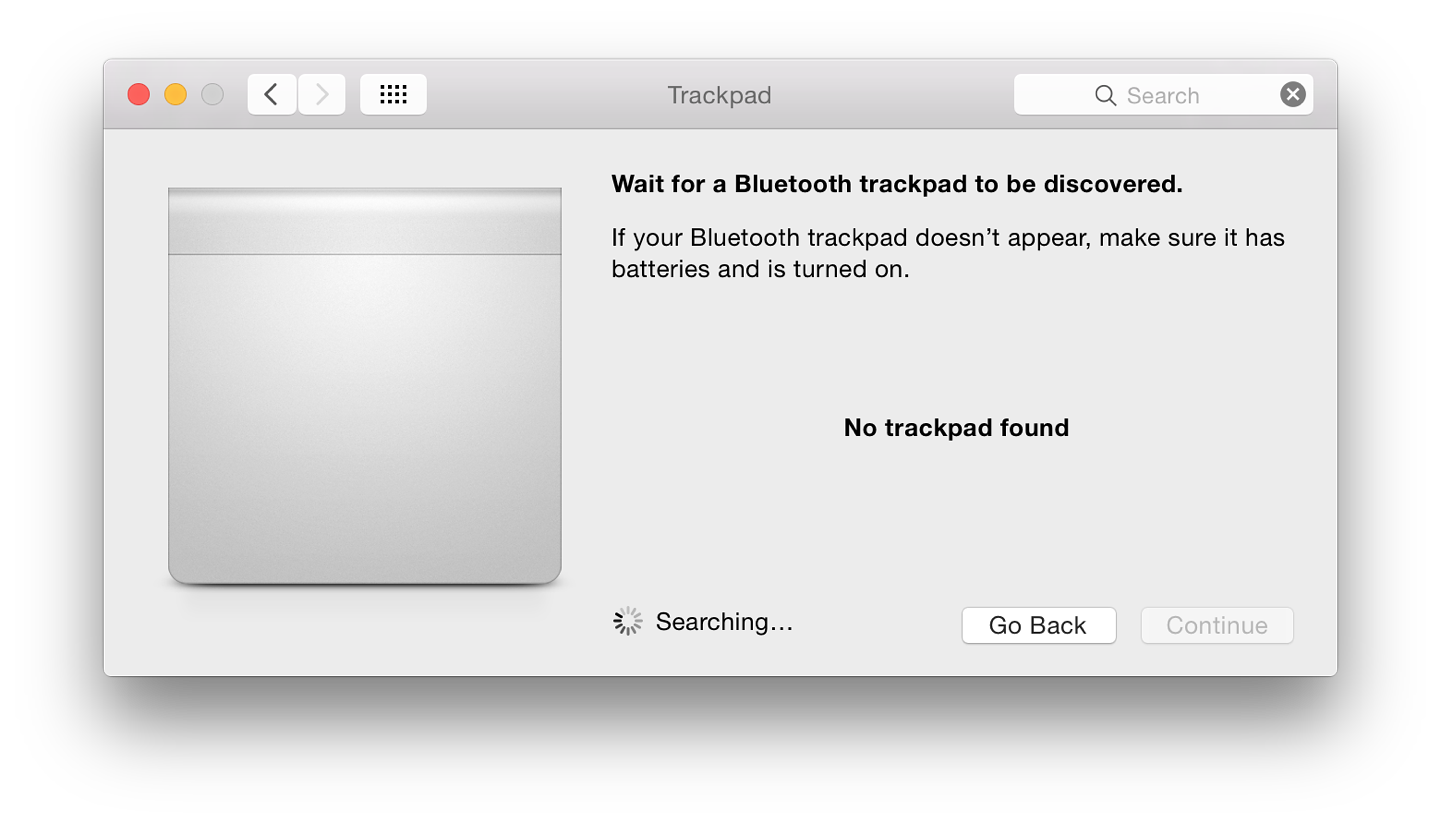

At the bottom of this panel is a slider bar for tracking speed (Slow - Fast). Also at the bottom right of all panels is a button for setting up a Bluetooth Trackpad (such as Apple's Magic Trackpad). A panel is opened and a search for a suitable Bluetooth device starts in the same way as the Mouse Preferences would search for a Bluetooth mouse. The trackpad should be on and discoverable.

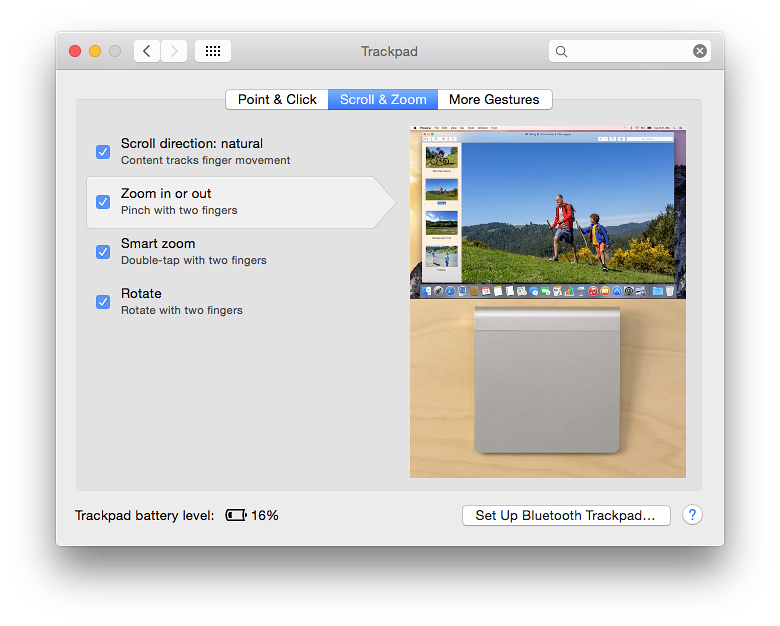

Scroll & Zoom

The panel that controls the zooming and scrolling functions possible with the trackpad appears to have been unchanged (again, apart from video). There are four gestures. None of these has any options:

Scroll direction: natural - When this is checked, as the fingers scroll down, so a page moves down, in the same way as occurs on the iPhone or iPad. It works with the page and not with the scroll bar. Those who prefer the movement of the scrollbar to follow finger movement (fingers upward, scrollbar up) may wish to leave this unchecked.

Zoom in or out - The Pinch with two fingers, as on iOS devices, will enlarge images and certain text content (Safari, Preview) when the gesture opens. It makes them smaller with the closing action. This may not work with some third party applications. Some users may find it useful to turn on the Zoom function available in the Vision section of Accessibility preferences

Smart zoom - a double-tap with two fingers -- enlarges pages. A second double-tap will return them to the normal size. As with the Pinch, this only works with certain applications.
Rotate - This allows a user to turn an image -- or a page in certain applications (like Preview, but not Safari). It is effective in Apple's photo software, like Aperture or iPhoto for rotating images quickly but only 90 degrees (also 180 and 270).

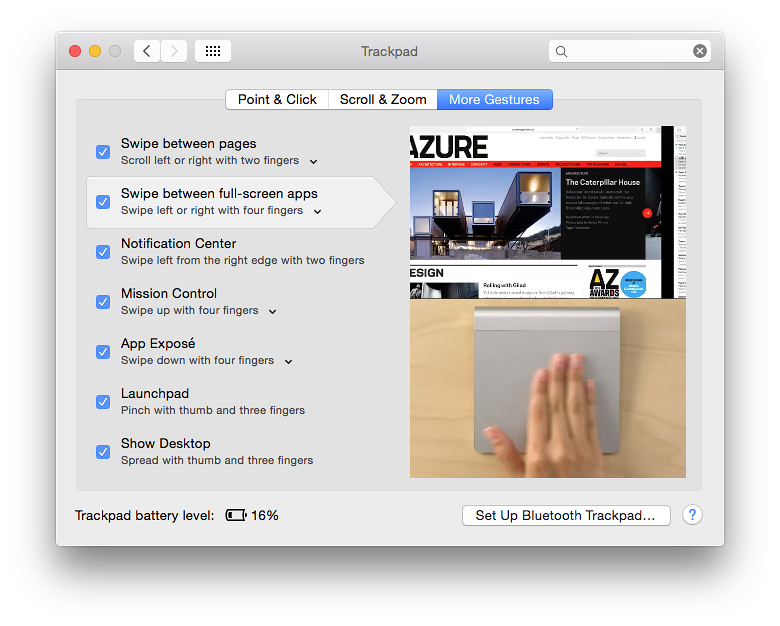

More Gestures

The final section has now has the same seven options that arrived with the update to Mountain Lion. These have varying degrees of difficulty.

Swipe between pages - a two-finger swipe to left or right scrolls between pages in some applications, such as Safari, where we can view pages that were loaded or viewed before the current one.
Options here are to swipe with three fingers (to the left or right), or swipe with two or three fingers.
Swipe between full-screen apps - this may be effected with either four fingers or three by default. It is also possible to specify three fingers or to specify four. If the three-fingert option is selected, Swiping between pages (above) with three fingers is not available and is automatically unchecked if it had been selected.
If full-screen apps are not in use, the swipe allows any desktop space to be displayed, including Dashboard if that is selected as a space in the Mission Control preference pane.

Notification Center - The two-finger swipe here in a leftwards direction from the right edge of the trackpad is intended to make the Notifications panel easily accessible. Users may also click on the menubar icon. I use a key combination I created in the Keyboard preferences.
Mission Control may be activated using the four finger swipe up. This displays the current desktop in a smaller size with applications open, with other spaces displayed as thumbnail images above. An option here is that three, instead of four fingers may be used.
App Exposé - A downward swipe with four fingers accesses App Exposé. All open windows of the top application are shown minimized on the desktop. The current page is shown in a larger form. As with the Mission Control trackpad gesture above, an option is to use three fingers instead of four.
Launchpad - the Launchpad feature may be activated using an awkward three finger pinch plus the thumb in a closing movement. This gives a swift access to the Launchpad screens, but may take a little practice to perfect.
Show Desktop - while the Launchpad gesture may be difficult for some, this gesture, using the thumb and three-finger spread to show the desktop, is perhaps even more difficult. Both seem to have become a little easier to use with Yosemite. Show Desktop may also be done - and is easier - with the F11 key (Fn + F11 on some Macs). All windows are cleared from the screen and the user has a view of only the desktop and icons displayed there.

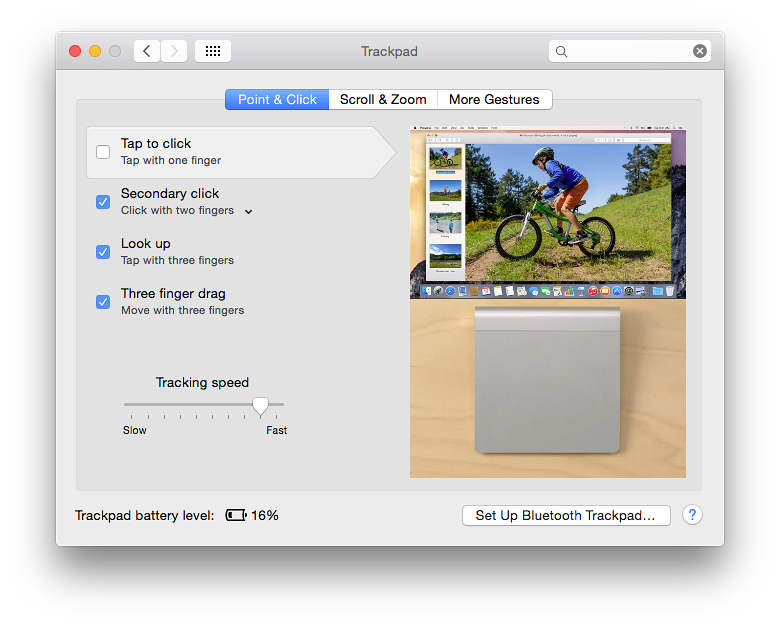

Magic Trackpad

The preferences panel on a Mac that uses the Apple Magic Trackpad is slightly different to assist with features concerning battery life. The videos for each of the gestures demonstrated are also different, with the trackpad being shown as the Magic Trackpad and not the built-in trackpad on the MacBook Pro.

At the bottom of each of the three panes, to the left of the "Set Up Bluetooth Trackpad" button, is a battery level indicator. Like the Magic Mouse (and the wireless keyboard) the Magic Trackpad runs on AA batteries which do sometimes run out. When that happens, the user is given a notification. On earlier versions of OS X, there was a button marked, "Change Batteries" to the right of the level indication: that is no longer shown.

Notes

A feature that I use often on the trackpad is Zoom with two fingers that works while pressing the Control key. This option is now in the Zoom features of Accessibility Preferences.

Older Macs with trackpads that do not support gestures will display a simpler trackpad preference panel.

Like other menubar items, using the Option key when clicking on the Bluetooth icon, brings up a menu with more information than is available normally. This may help with diagnostics.
